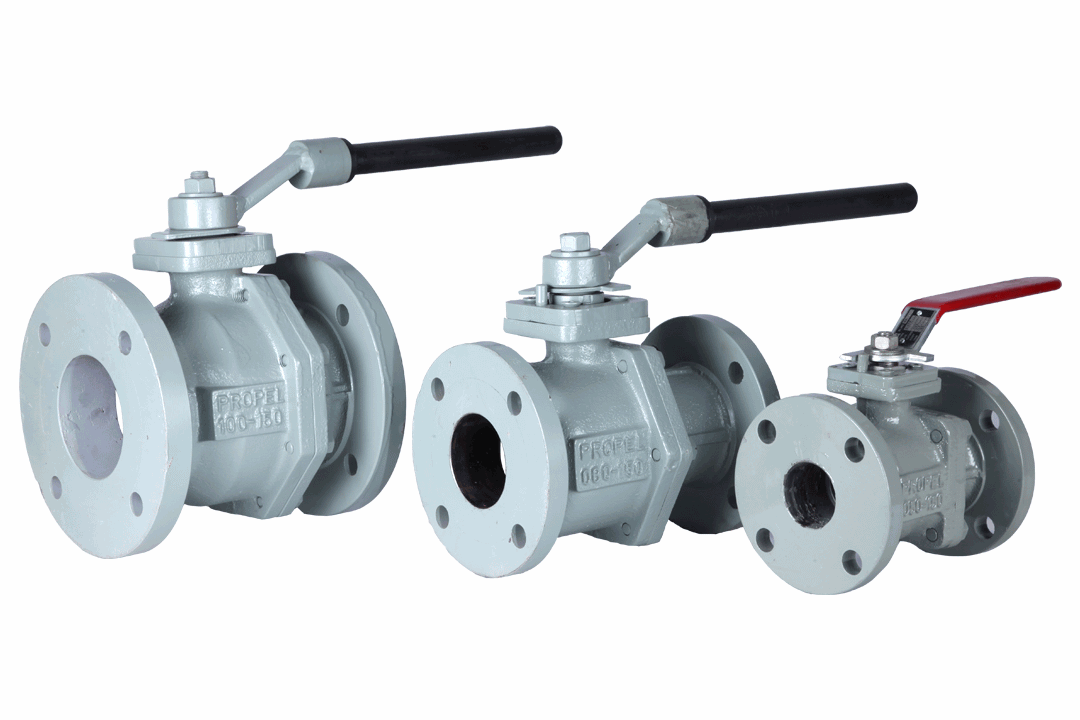

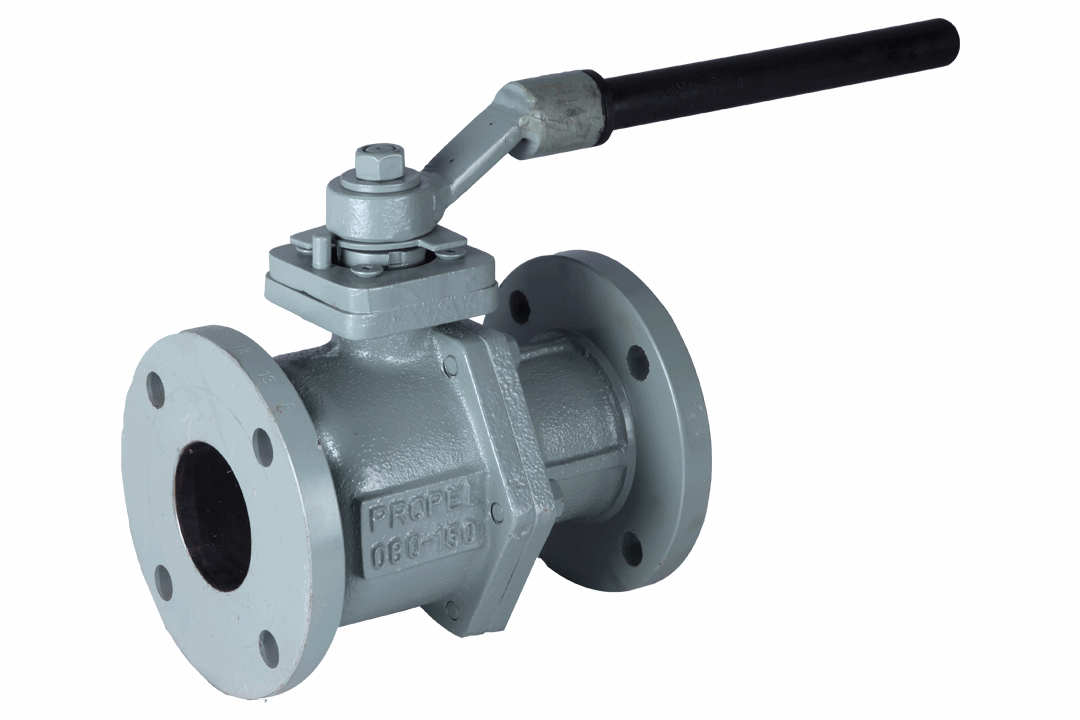

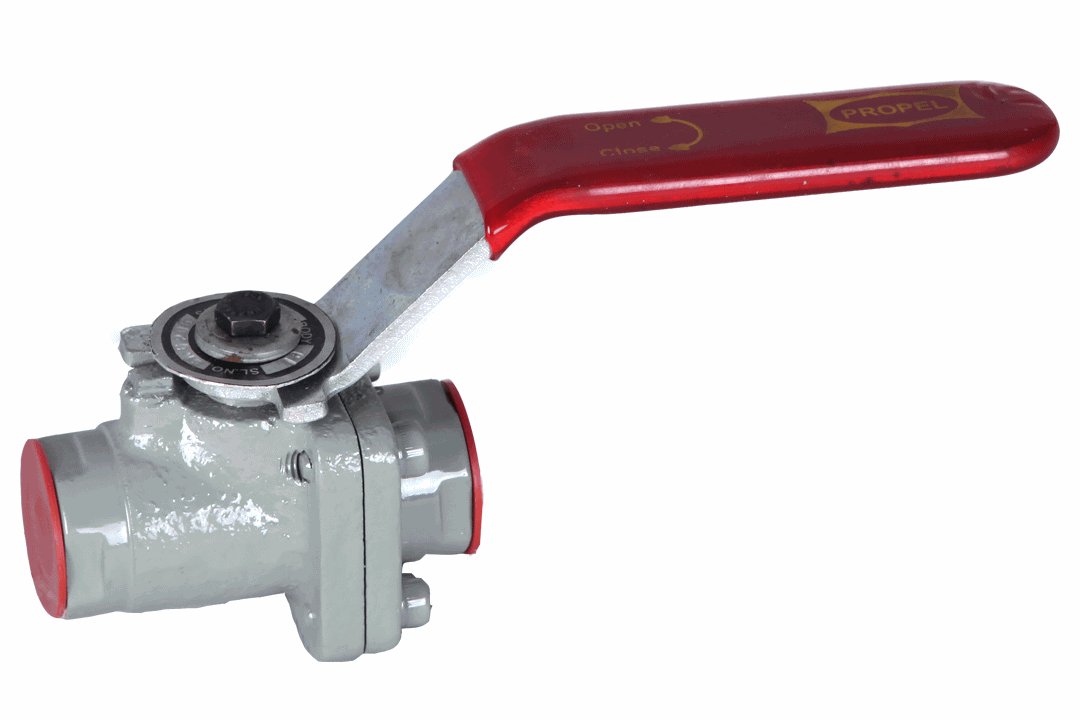

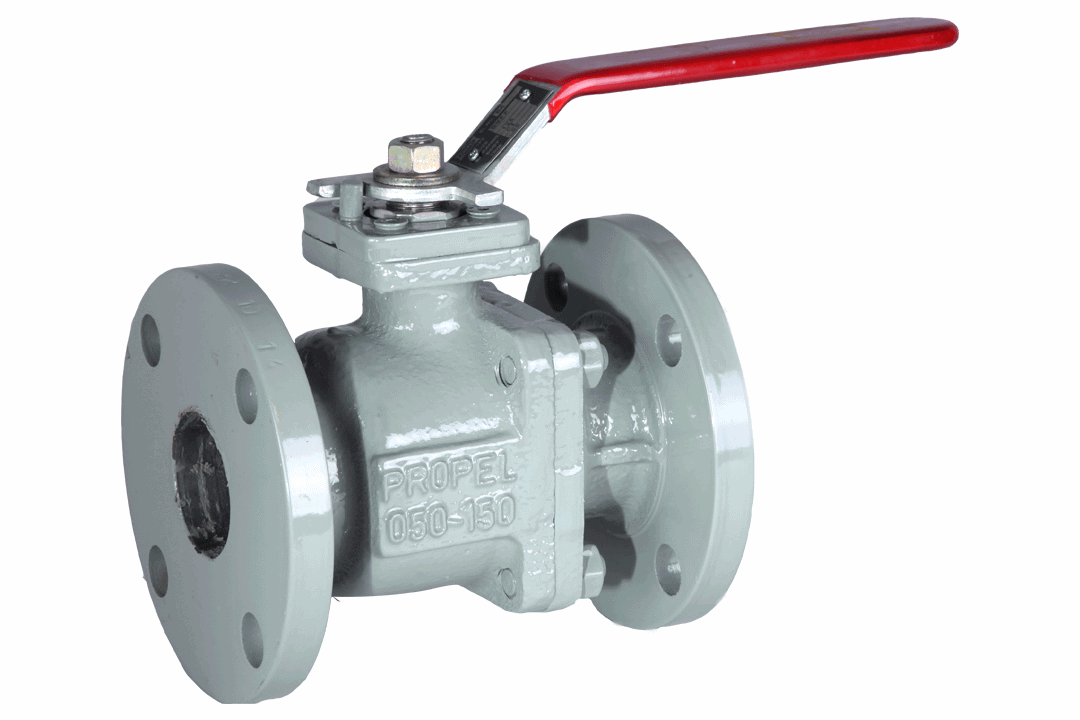

Cast Iron Ball Valves
Description
- We are proud to introduce our next generation Cast Iron Ball Valves which will change your perception of Cast Iron Valves. Best suited for Edible Oil Refineries, Vanaspati Plants, Solvent Extraction Plants and General Demineralized Water Lines.
Features
- Robust Two Piece Full Port Design.
- Stainless Steel Ball and Stem.
- Standard ISO 5211 pad for automation.
- Wide variety of seat material choices.
- Square stem for enhanced strength.
- Improved stem seal space.
- Break proof internal flanges & stopper pins.
- Best in quality epoxy paints for better surface protection in all weather conditions.
Tables

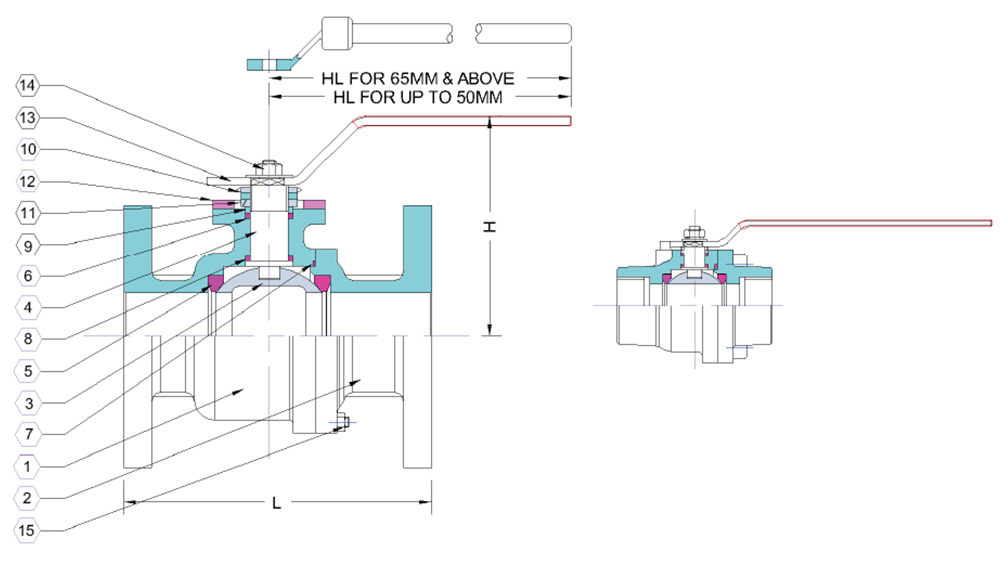

| Part No |
Description | Material |
|---|---|---|
| 1 | Body | Cast Iron to IS-210 Gr. FG 220 |
| 2 | End Peice | |
| 3 | Ball | SS 304, 316 or Alloy 20 |
| 4 | Stem | SS 304, 316 or 316L |
| 5 | Seat | PTFE / Filled PTFE / PEEK |
| 6 | Stem Seal | PTFE / Filled PTFE |
| 7 | Body Seal | |
| 8 | Thrust Washer | PTFE |
| 9 | Stem Seal Follower | SS 410 / 304 / 316 / 316L |
| 10 | Lock Nut | |
| 11 | Spring Washer | Spring Steel to IS 3063 |
| 12 | Stopper Pin & Pad | MS Phosphated |
| 13 | Hand Lever | Carbon Steel Powder Coated / SS 304 |
| 14 | Stem Nut | CS / SS 304 |
| 15 | Body Stud & Nut |
| S.No | Valve Size |
Bore Thro Ball |
Class 125 | |||
|---|---|---|---|---|---|---|
| L | H | HL | ||||
| 1 | 25 | 25 | 127 | 90 | 150 | |
| 2 | 40 | 38 | 165 | 125 | 220 | |
| 3 | 50 | 50 | 178 | 135 | 220 | |
| 4 | 65 | 60 | 190 | 170 | 300 | |
| 5 | 80 | 75 | 203 | 190 | 350 | |
| 6 | 100 | 100 | 229 | 210 | 350 | |
| 7 | 150 | 150 | 267 | 250 | 400 | |
- Valves generally conform to BS 5159.
- Hydrostatic proof test Body 24 kg/sq. cm., Seat 14 kg/sq. cm.
- Ends Flanged as per ANSI B 16.1 125 lbs.
- Can replace Gate Valves with ANSI B16.10 Face to Face dimensions.
