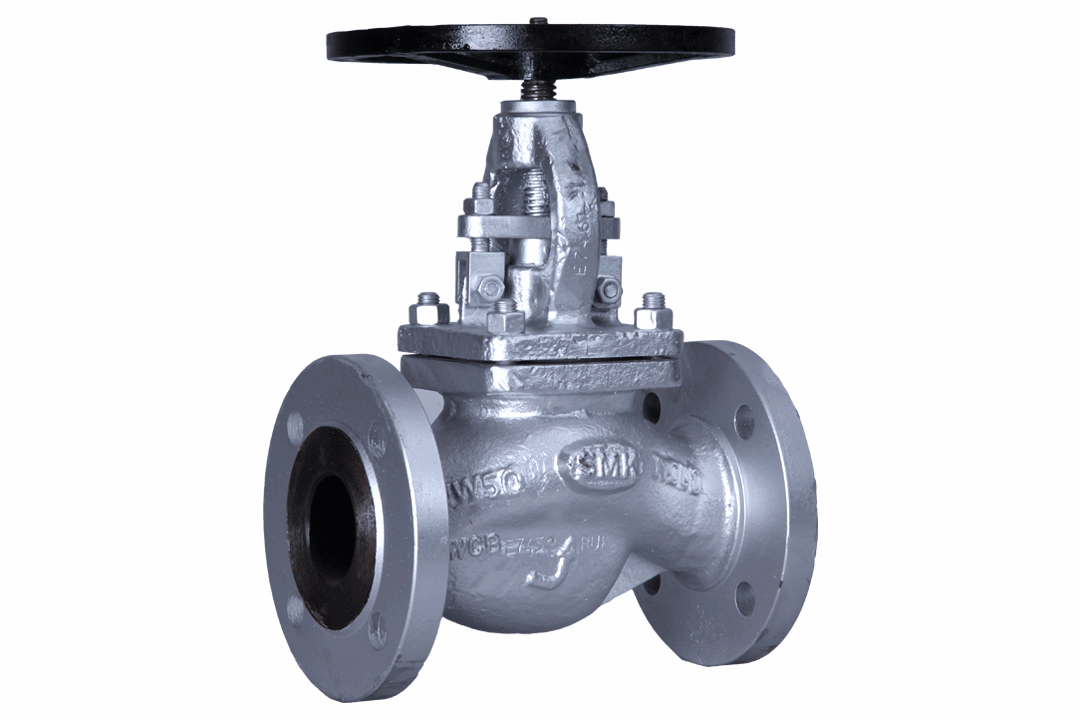

Globe Valves & Non Return Valves


 Description

  •   Globe Valves and Non Return Valves for Steam / Thermic Fluid, Process and Utility Lines supplied with IBR Test Certificate in Form III C also.

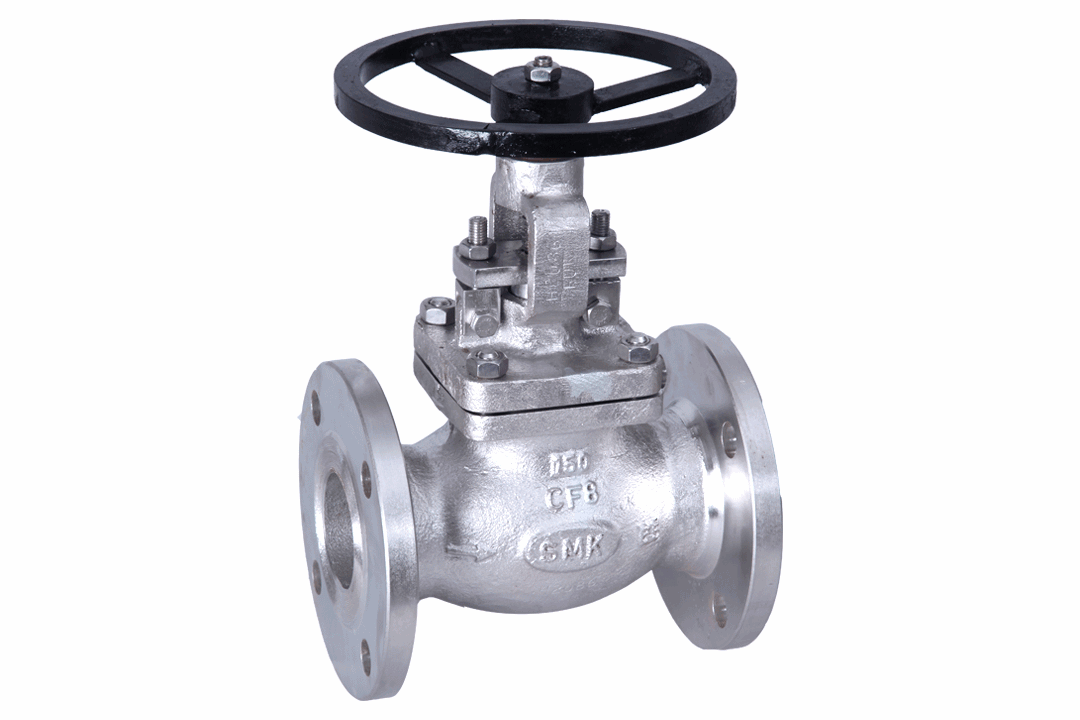

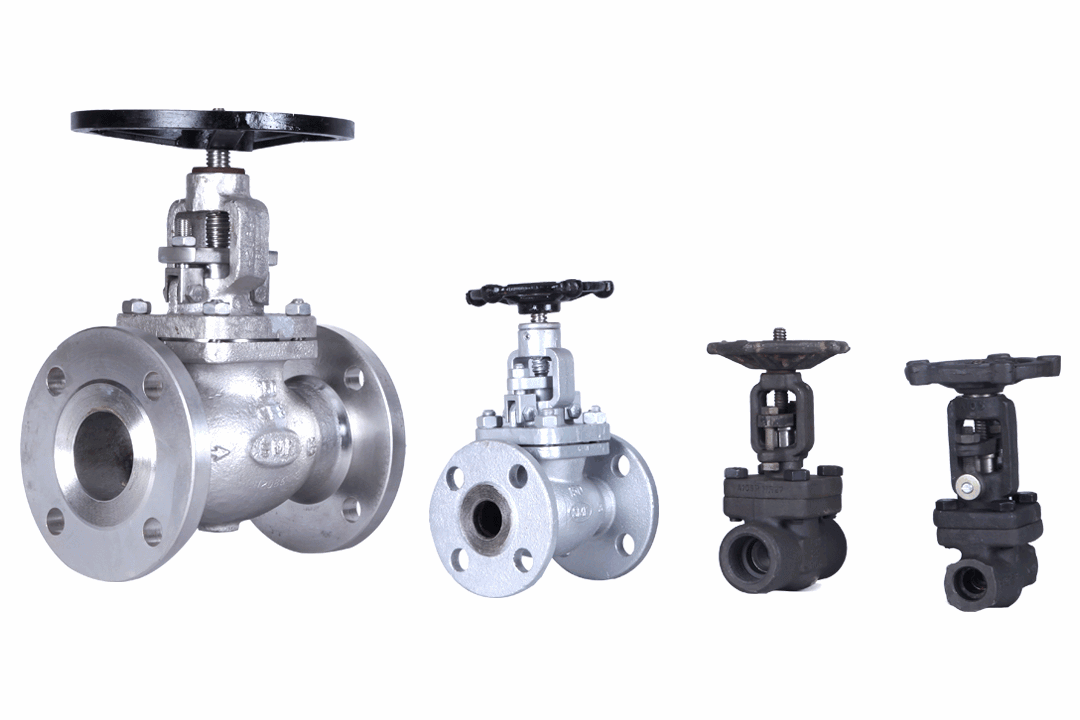

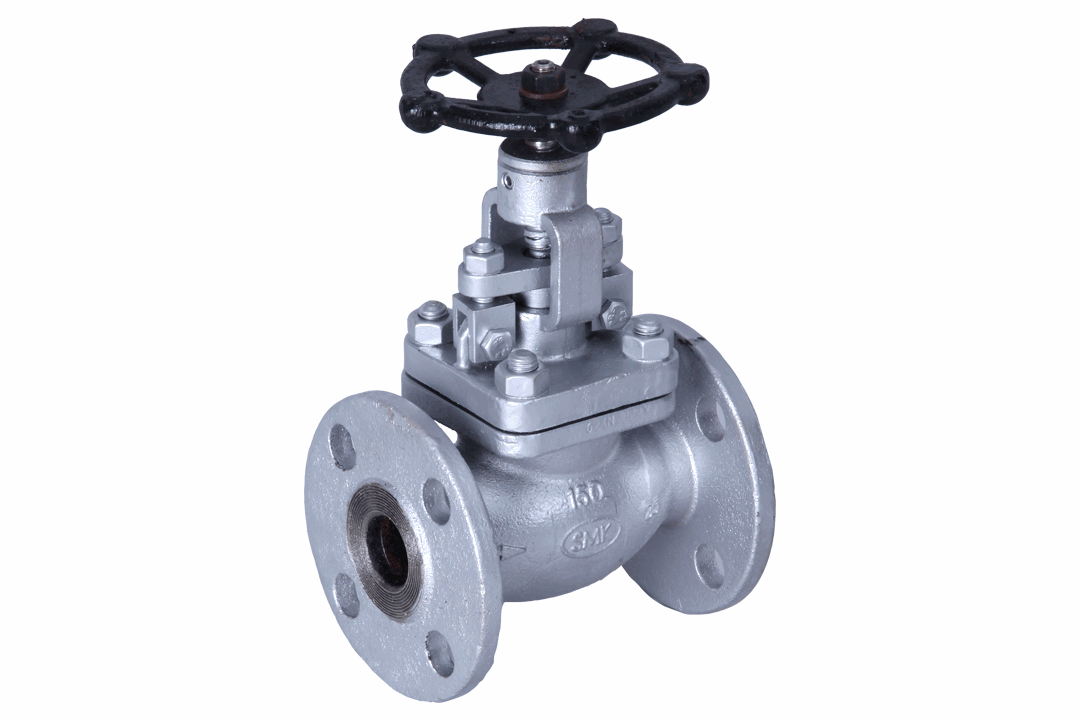

  •   Globe Valves in ASA and DIN Standards.

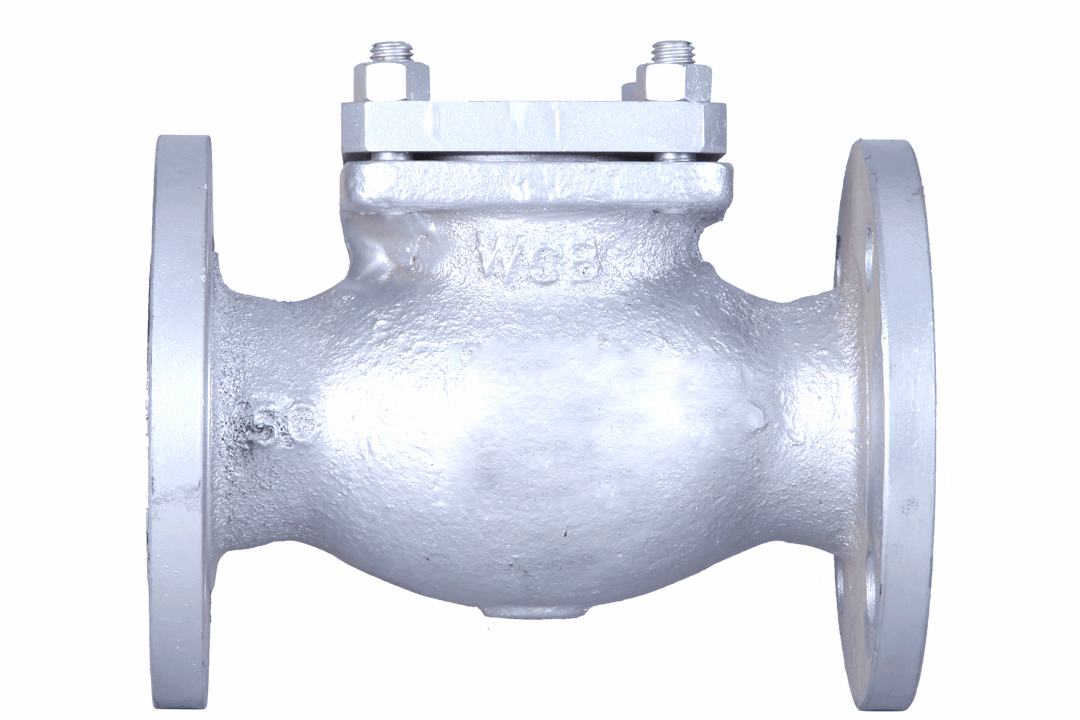

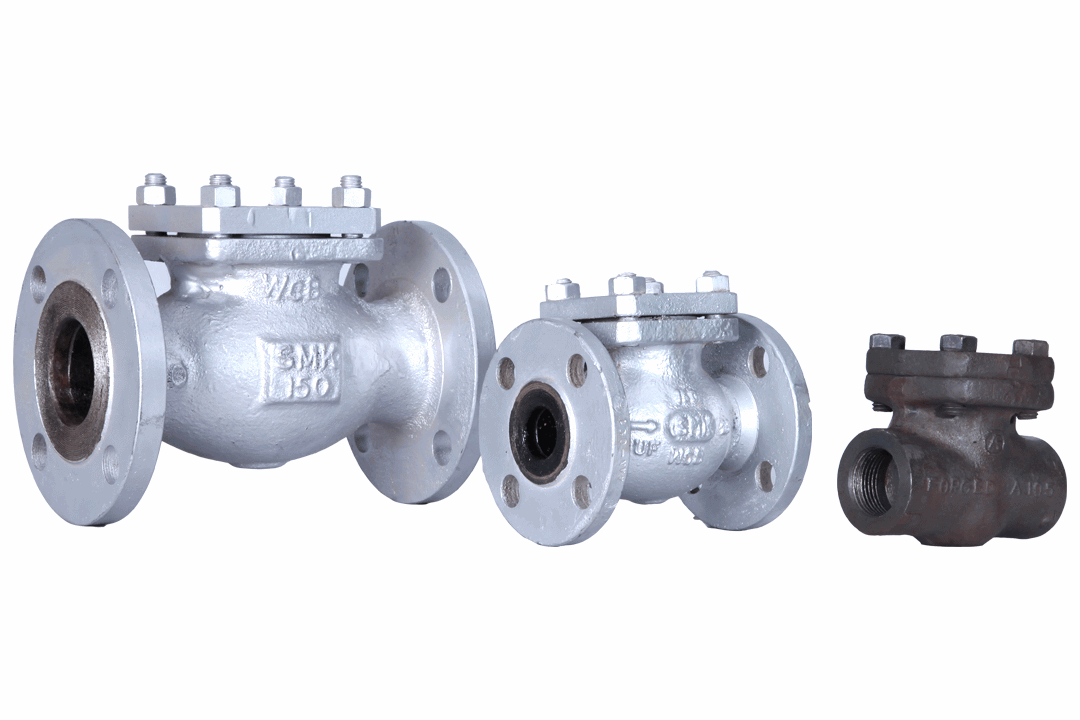

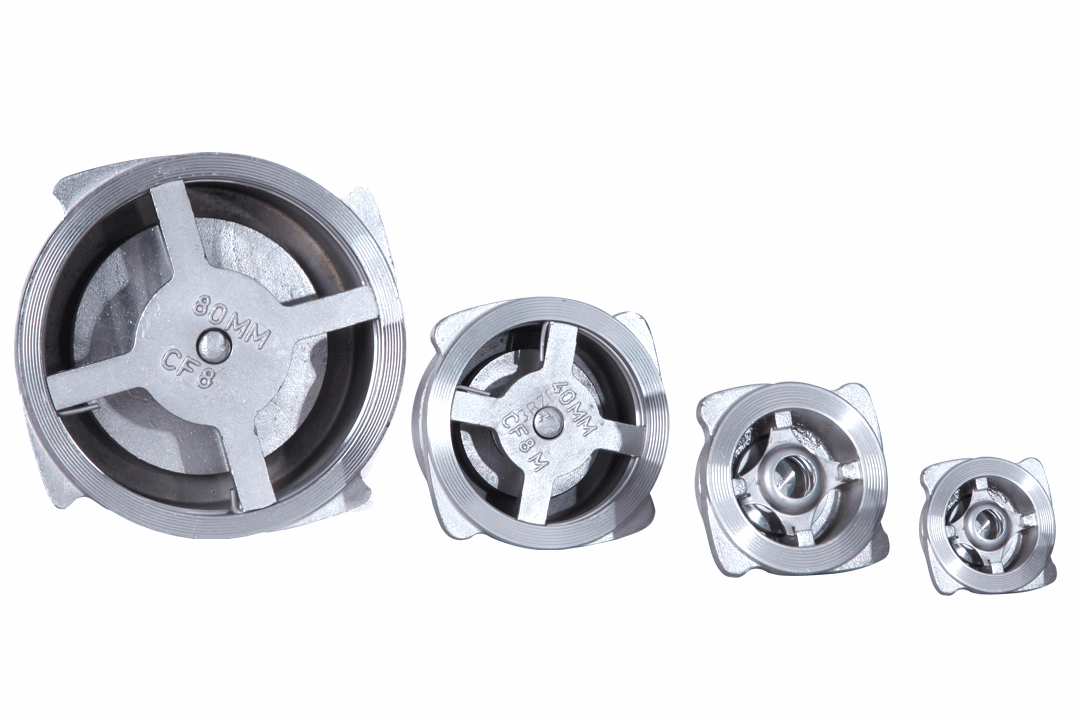

  •   Non Return Valves in ASA and DIN Standards.

 Features

  •   Suitable for high temperature service.
  •   Low fugitive emission.
  •   Spindles of high quality stainless steel, ground and polished for a very smooth finish for extended gland life.
  •   Gland packing ranging from Graphite, Braided and Reinforced Graphite with SS wires, PTFE, PTFE Chevron, Braided and Reinforced PTFE with SS wires.
  •   Live load on gland packing for extended low fugitive emission service.
  •   Optional stelliting of seats and disc faces for longer life.
  •   Conical disc arrangement for control, PTFE disc insert for gaseous applications.
  •   Wide range of body-bonnet gasket options like Graphite, Spiral wound SS with Graphite, PTFE and other fillers.
  •   Gear, Electric and Pneumatic Cylinder operators can be provided.

  • Why fugitive emission is so critical.

    In a petroleum plant, 60% of fugitive emission happens from valves. Hence it is critical to reduce the fugitive emission from valves as much as possible.

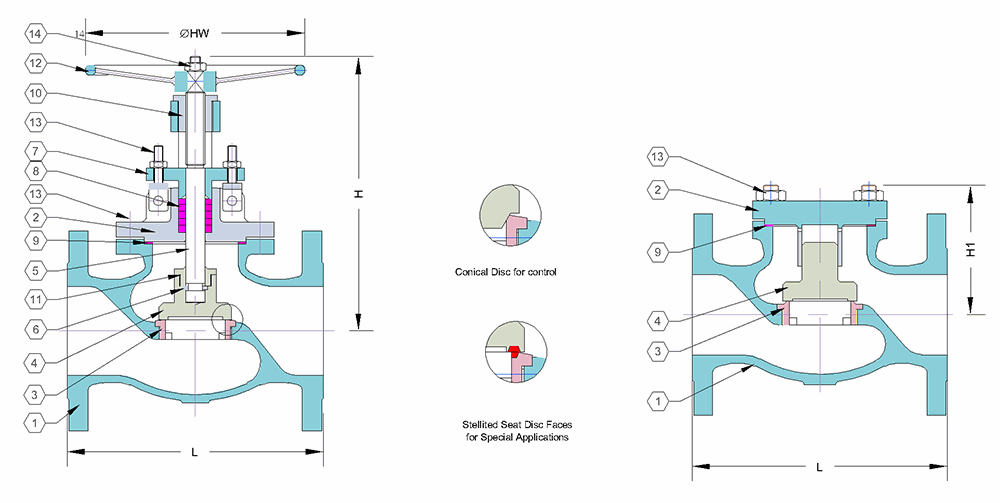

 Diagram

 Tables

    Part
    No    		 Description Material
    1 Body Cast Carbon Steel to ASTM A 216 Gr WCB, ASTM A 352 Gr LCB, ASTM A 351 CF8,CF8M,CF3,CF3M and other Nickel Alloys
    2 Bonnet/Cover
    3 Seat CS with 13% Cr Deposit / SS 304 / SS 316 / SS 316L / other Nickel Alloys / Stellite (Optional)
    4 Disc
    5 Stem SS 410 / 304 / 316 / MONEL / HAC / other Nickel Alloys
    6 Split Ring
    7 Gland Flange Same as Body & Bonnet Material
    8 Gland Packing Graphite, Braided and Reinforced Graphite with SS wires, PTFE, PTFE Chevron,Braided and Reinforced PTFE with SS wires
    9 Body-Bonnet Gasket Graphite, Spiral wound SS with Graphite, PTFE and other fillers
    10 Stem Bush EN 1A / Alloy Iron / Al. Bronze
    11 Disc Retainer Same as Disc Material
    12 Hand Wheel Fabricated MS / Malleable Iron
    13 Fasteners ASTM A193 / ASTM A194 Carbon Steel / Stainless Steel
    14 Hand wheel Nut CS to IS 1570 / Stainless Steel
    Size Class 150 class 300
    L H(open) H1 HW L H(open) H1 HW
    25 127 175 25 130 203 190 25 150
    40 165 250 40 150 229 255 40 180
    50 203 240 50 180 267 350 50 200
    65 261 265 65 200 292 375 65 250
    80 241 450 80 250 318 425 80 300
    100 292 460 100 300 356 480 100 350
    150 406 495 150 350 445 650 150 400
    200 495 700 200 400 559 780 200 450
    250 622 760 250 450 622 880 250 500
    300 698 820 300 500 712 930 300 650
