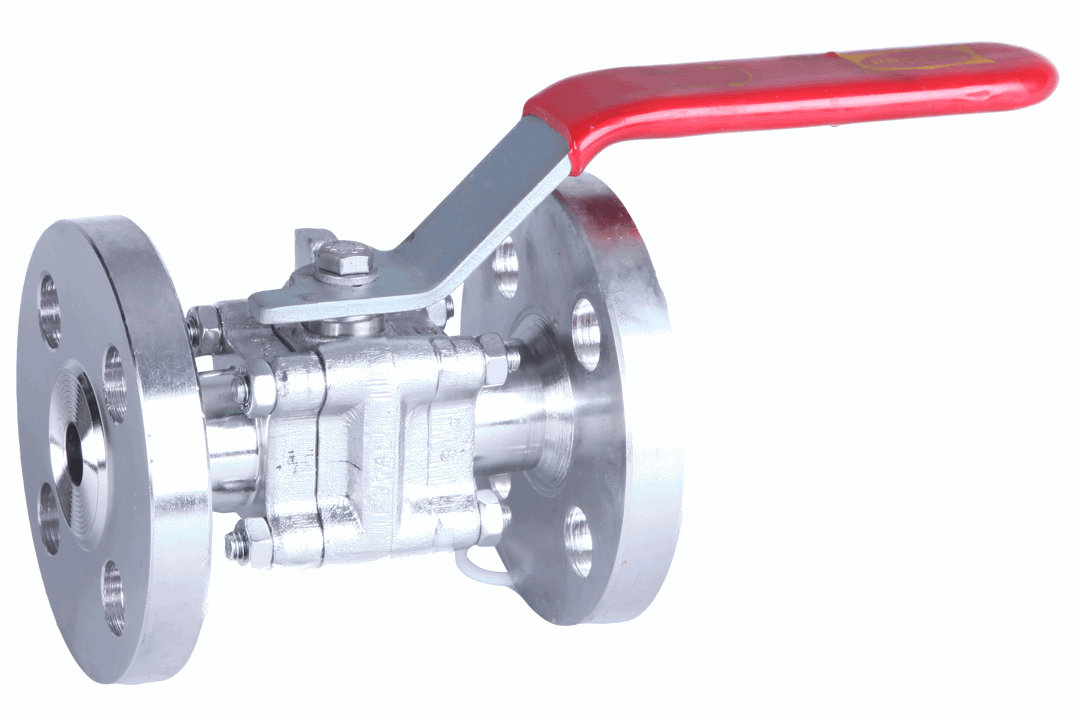

 Description

•   High Quality Stainless Steel / Other Corrosion Resistant Alloys for Process Lines, Carbon Steel Ball Valves for Utility Lines.
•   Automated Valves with Actuators, Positioners and Limit Switches.

 Features

•   Full Bore for uninterrupted flow and reduced pressure drop / energy consumption.
•   Investment Casting up to 100 mm for better finish.
•   Fine finished stem in the packing area for better gland life.
•   Square spindle for better strength and more surface contact for hand lever.
•   Blow out proof stem.
•   Wetted areas fully machined and polished.
•   Optional Fire safe and Anti-Static features.
•   Mirror finished ball for tight shut off and lower operating torque.
•   Fool proof hand lever design.
•   Sturdier and Better operator friendly hand lever.
•   Pressure Relief slots on seats.

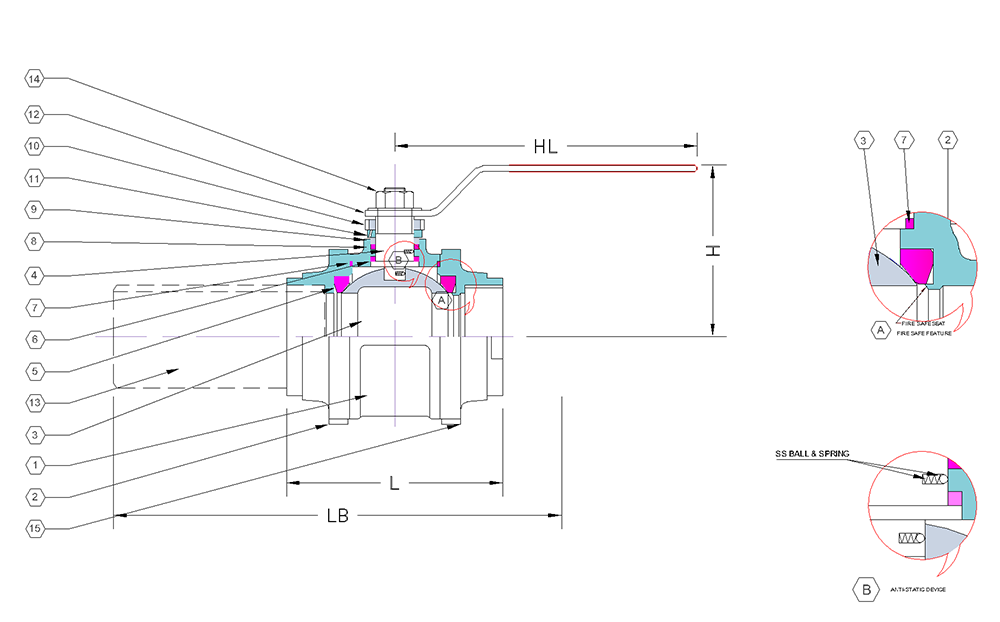

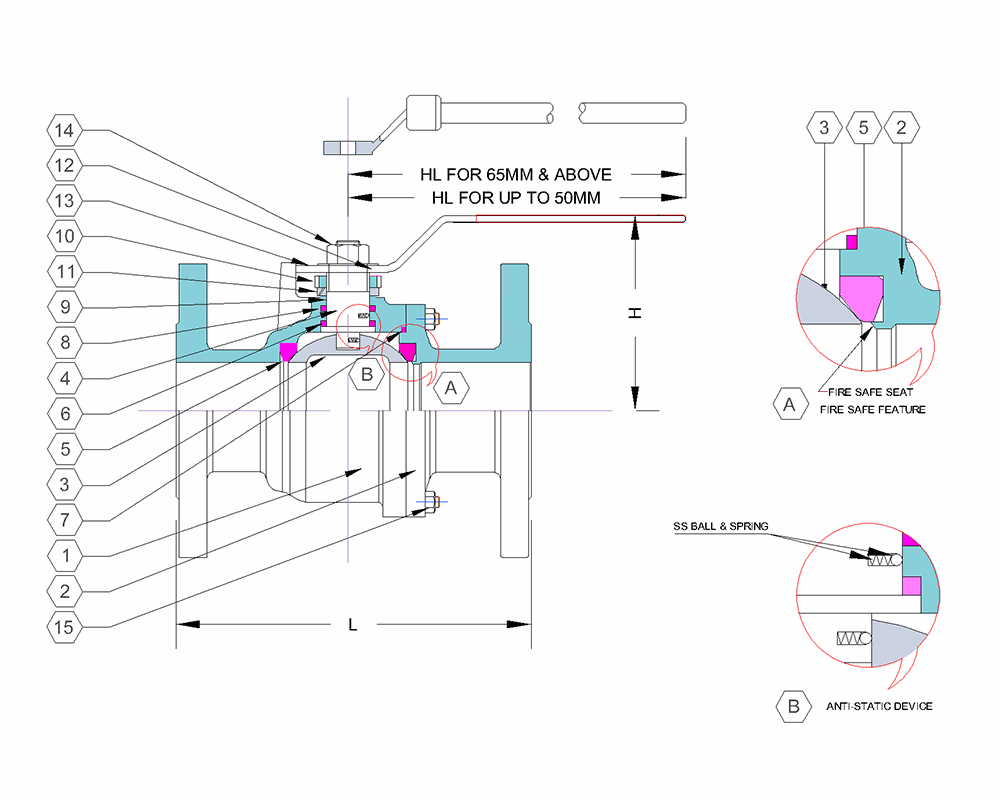

 Diagram

 Tables

Part No	Description	Material
			1	Body	Cast Stainless Steel to ASTM A 351 Gr. CF8 / 8M, CF3 / 3M, CN7M ASTM A494-CW 12 MW (HAC), -N-12MV (HAB) ASTM A890 Gr. CD4M Cu and other Duplex / Super Duplex Alloys
2	End Peice
3	Ball	Cast Stainless Steel to ASTM A 351 Gr. CF8 / 8M, CF3 / 3M, CN7M ASTM A494-CW 12 MW (HAC), -N-12MV (HAB) ASTM A890 Gr. CD4M Cu and other Duplex / Super Duplex Alloys
4	Stem	SS 410 / 304 / 304L / 316 / 316L / HAC / HAB / other Nickel Alloys
5	Seat	PTFE / Filled PTFE / Modified PTFE / PEEK
6	Thrust Washer
7	Body Seal	PTFE / Pure Graphite
8	Stem Seal
9	Stem Seal Follower	SS 410 / 304 / 304L / 316 / 316L / HAC / HAB / other Nickel Alloys
10	Lock Nut
11	Spring Washer	Spring Steel to IS 3063 / SS 304
12	Hand Lever	Carbon Steel Powder Coated / Galvanized, Stainless Steel
13	Stopper Plate	Carbon Steel Powder Coated / Galvanized, Stainless Steel (For 65mm & above)
14	Stem Nut	ASTM A193 / ASTM A194 Carbon Steel / Stainless Steel
15	Body Stud & Nut

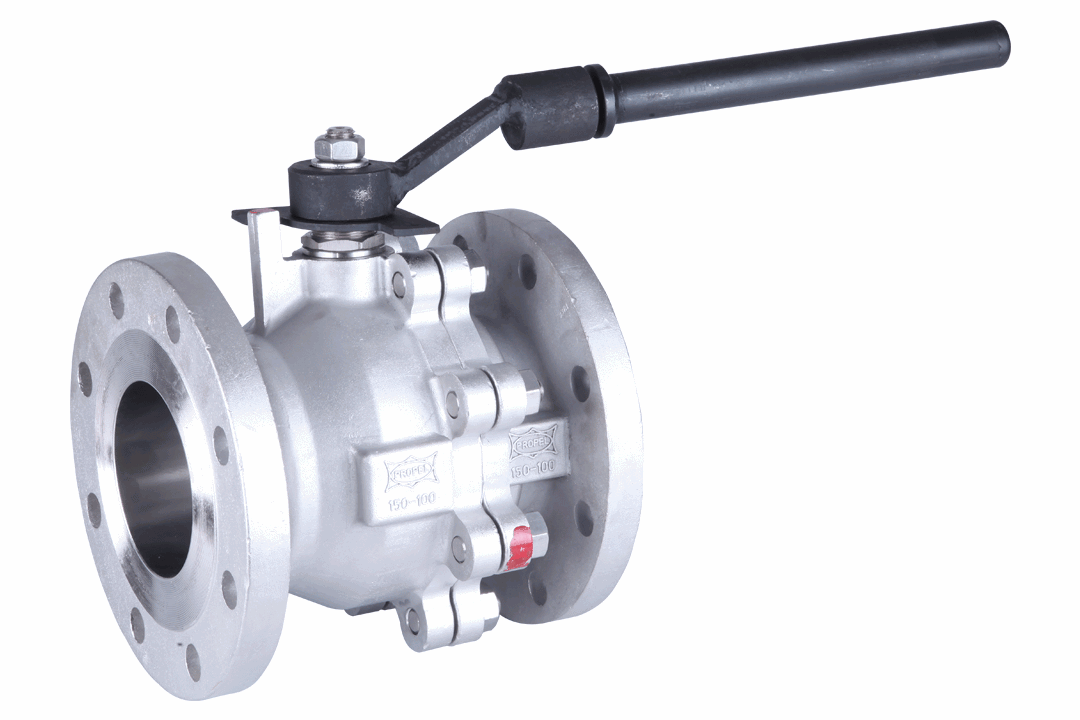

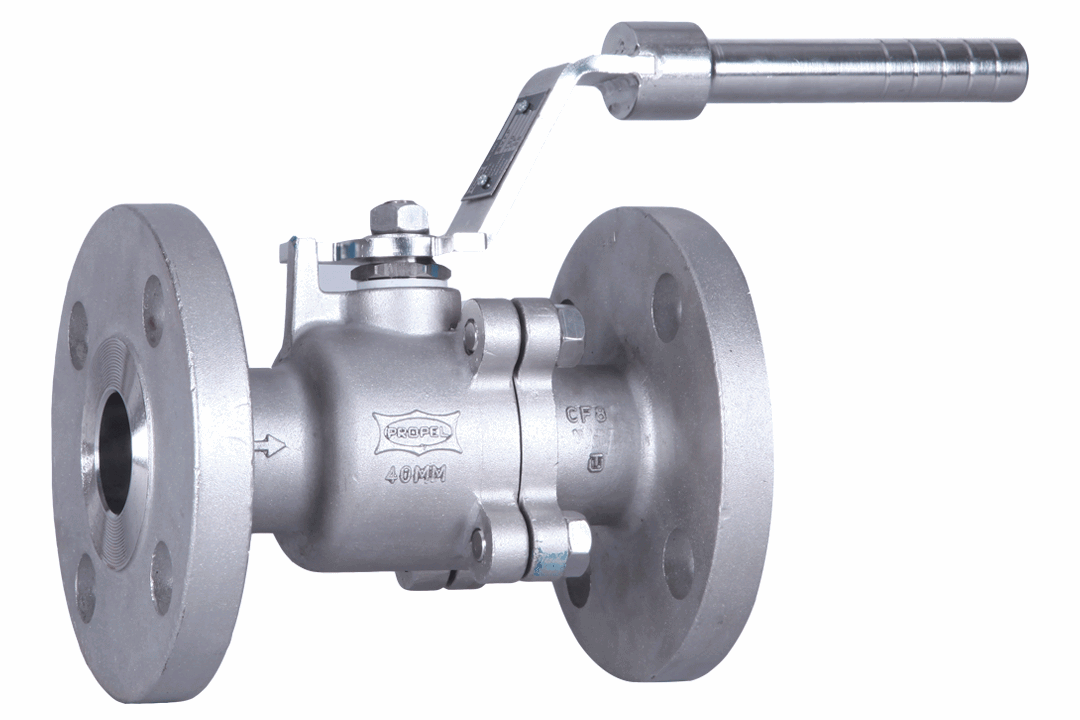

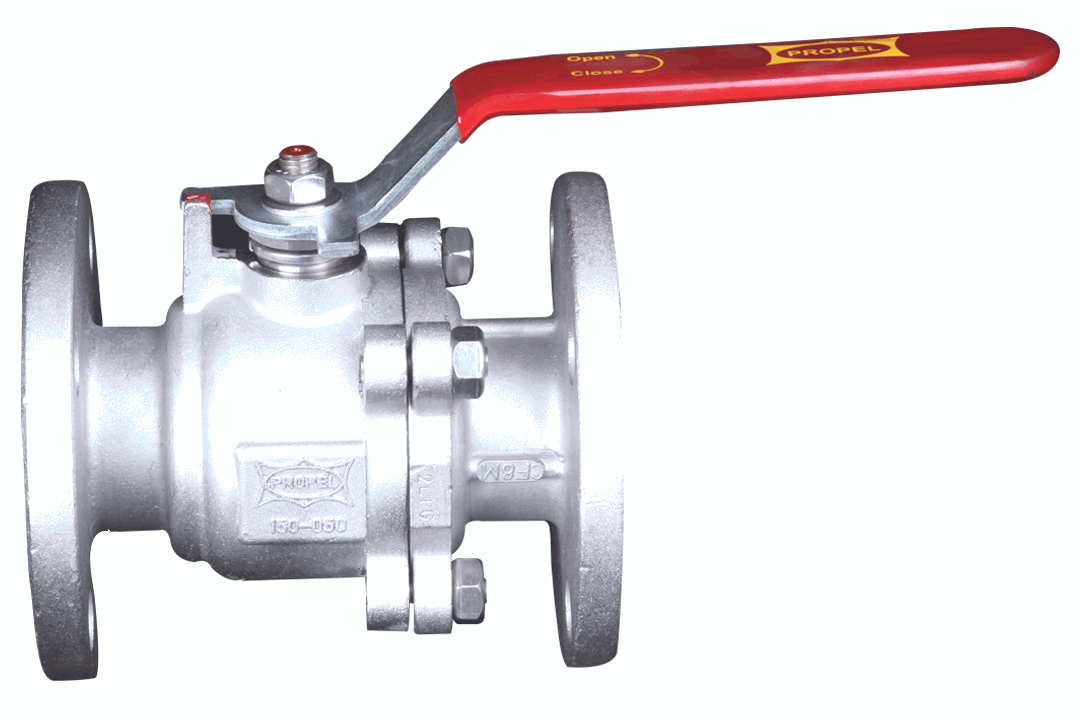

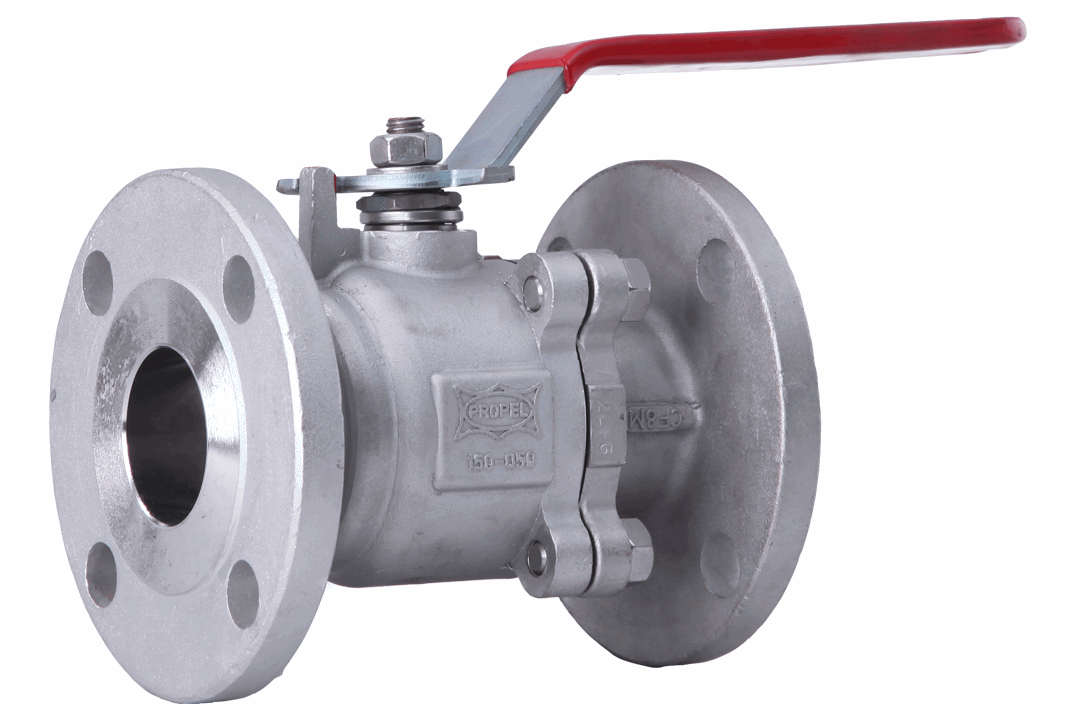

Flanged Ball Valves
S.No	Valve Size	Bore Thro Ball	Class 150			Class 300
			H	L	HL	H	L	HL
1	15	12	108	90	150	140	90	150
2	20	19	117	125	150	152	125	150
3	25	25	127	135	150	165	135	150
4	40	38	165	170	220	190	170	220
5	50	50	178	190	220	216	190	220
6	65	60	190	210	350	241	210	350
7	80	75	203	250	350	282	250	400
8	100	100	229	275	400	305	275	425
9	150	150	267	325	450*	403	325	500*
10	200	196	457	370	550*	501	370	650*
11	250	245	534	400	675*	568	400	750*
12	300	300	610	425	800*	648	425	900*

^* Actuator Recommended

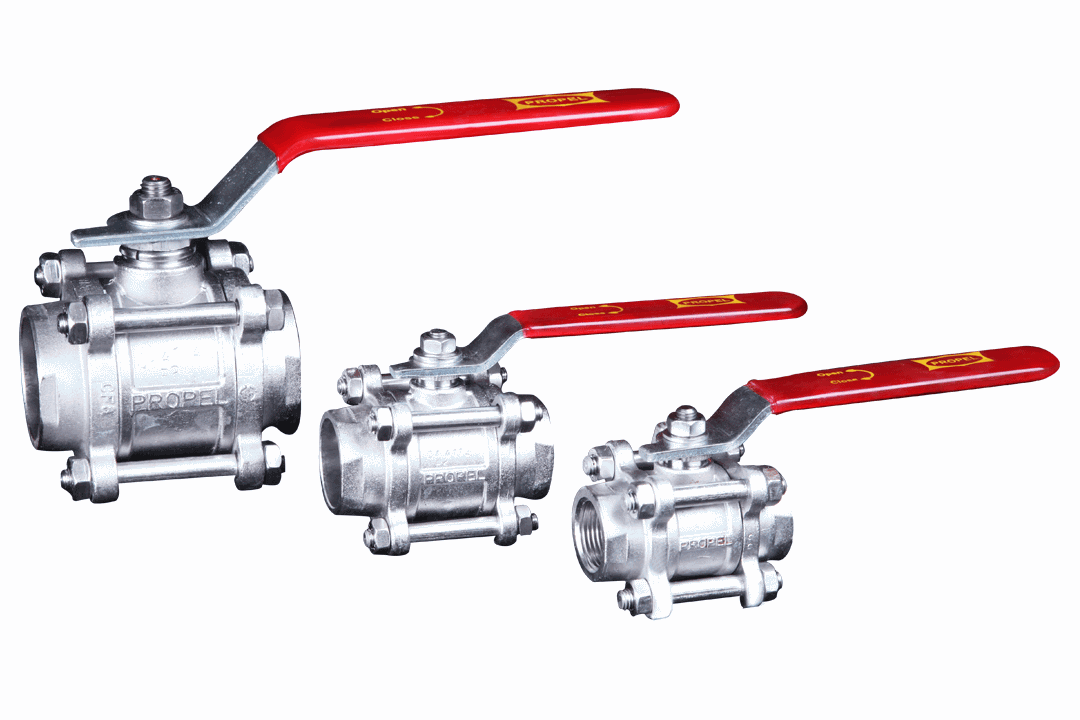

Screwed Ball Valves
S.No	Valve Size	Bore Thro Ball	Class 150
			L	LB	H	HL
1	15	12	60	260	65	150
2	20	19	75	275	70	150
3	25	25	85	285	80	150
4	40	38	105	305	95	220
5	50	50	125	325	100	220

•   Valves generally conform to BS 5351 / BS EN ISO 17292 / API 6D.
•   Hydrostatic and Pneumatic testing as per BS 6755 Part 1 / BS EN 12266-1 / API 598.
•   Ends Flanged as per ANSI B 16.5 150/300 lbs.
•   Fire-safe design as per BS 6755 Part 2 / BS EN ISO 10497 / API 607.
